10 Axle 150 Ton Wind Tower Trailer has shipped to Vietnam.
10 Axle 150 Ton Wind Tower Trailer for Sale In Vietnam
Vietnamese customers purchased TITAN's wind tower trailer through the introduction of local customers.
TITAN is already well-known in the Vietnamese market. Because the customer has seen the TITANwind tower trailer locally, the customer immediately contacted our sales manager Alice and confirmed the configuration and its detailed content. The customer found through TITAN’s official website that many Vietnamese customers have purchased TITAN’s extendable wind tower trailer.
The customer expressed that they want the contact information of Vietnamese customers to visit other customers’ wind tower trailers. Of course, we must protect our customers’ information from being leaked. It is what you should do as a trusted supplier. If the customer’s consent is obtained, we are very happy for the customer to visit the local wind tower trailer.

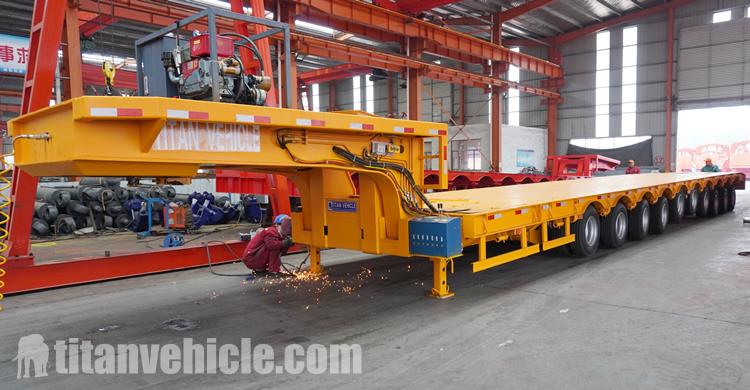

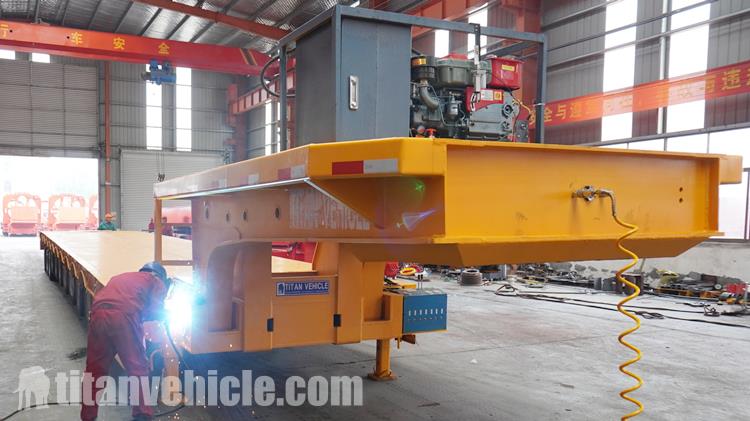

After discussing with Alice, the customer bought a 10 axle wind tower trailer. Below is a picture of the equipment shipped. The wind tower trailer adopts the pulling structure to extend the length, and the wind blade lies flat on top of the trailer.
10 Axle Wind Tower Transport Trailer for Sale Price
The significant feature of the wind turbine transport extendable lowbed trailer is that it is super long and has longitudinal expansion and contraction. Due to the super length of the vehicle type, the turning difficulty is significantly increased. To overcome driving on the curve, the wind tower trailer is generally equipped with a hydraulic steering system, and the rear axle is fitted with a power station.
Considering the stability and the length of the windmill blade, the rear axle adopts its air suspension system, drawing and pulling the longitudinal beam freely, and has good trafficability.
The 150 ton wind tower trailer of the blade can be more than 60 meters long. It has three or four axle balance types, remote control power steering, and a mass balance block is installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs equally and balance the force on the front and rear axles.
150 Ton Wind Tower Trailer for Sale Manufacturer
Hydraulic suspension
Hydraulic windmill blade is an extendable telescopic beam connect with a hydraulic modular trailer, axle numbers could be three or above to adapt different weights of the blades. In this case, the hydraulic wind blade trailer has a bigger steering angle compare to that of the airbag extendable trailer.
The hydraulic suspension blade trailer has a lower cargo platform height than that of the air suspension trailer, also the lifting stroke is wider. The hydraulic suspension has advantages so the cost is higher than the air and mechanical suspension blade trailer.
Details of Wind Tower Trailer for Sale with Best Price
Steerable axles

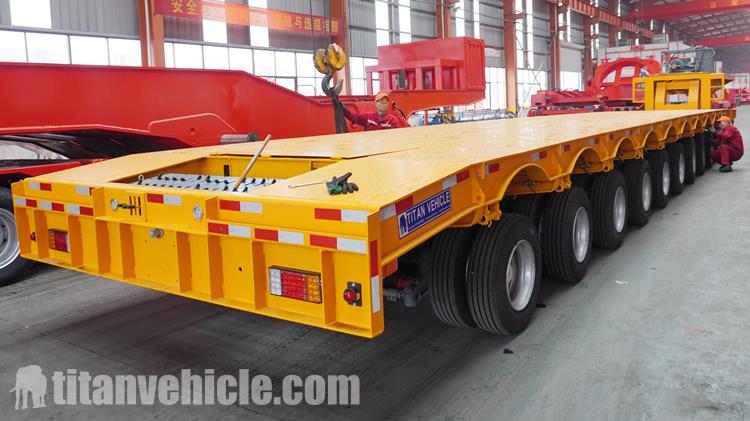

The photo shows the steerable axles(bogies). The hydraulic cylinders controlling the steering of the trailer. Due to the length of the wind(together with the blade) could reach up to 70 meters, the most suitable way to realize steering is by operator’s manual control.
Extendable telescopic beam
The telescopic beam blade trailer is extendable to 62 meters. Sliding pneumatic locking system for telescopic boom on both sides. The reels of wire are air brake hose and electric wire, make sure the brake system and illumination system are working while the telescopic beam is extended.
Control panel
The wireless remote control panel enables the operator to steer the trailer in a safe and convenient way. You need the blade adapter. Wind blade trailer vs blade adapter trailer. Both trailers are using to transport windmill blades, but for different scenarios.
