40Ft Sidelifter Trailer for Sale In East Timor with Best Price

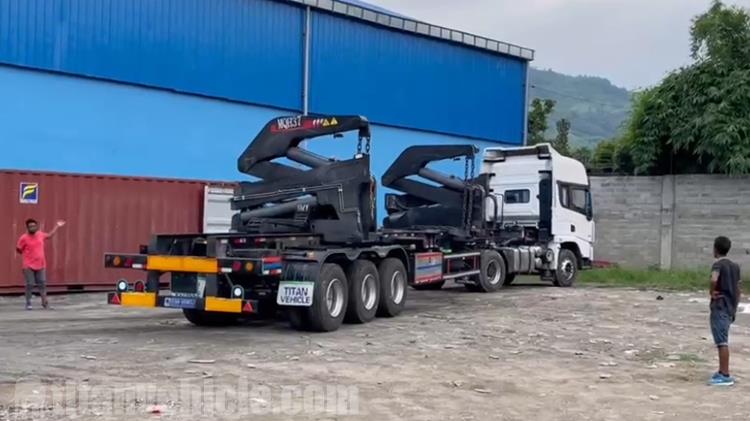

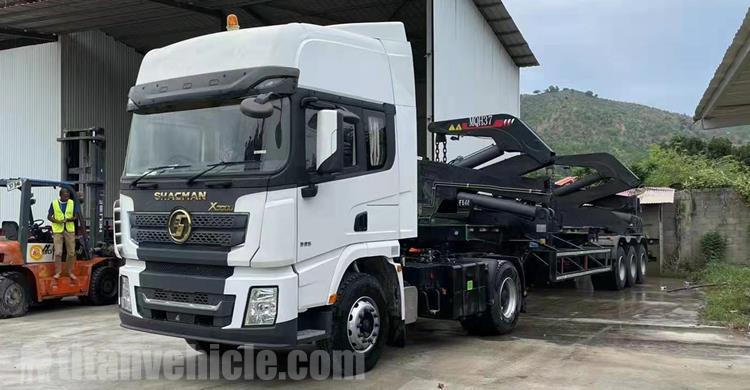

The East Timor customer’s 40ft sidelifter trailer was finally received after 2 months of drifting at sea. The customer is trying out all the functions of the TITAN 40ft sidelifter. The customer said that the wireless remote control is very convenient, and it can adjust the loading and unloading functions in a full range of mobile positions.
The customer said that she was very satisfied and that Alice was a very professional salesperson. Because Alice has provided the operation video to explain it, it is convenient for customers to understand the operation.
The 40Ft Sidelifter can complete multiple operations such as container self-loading and unloading, vehicle-to-vehicle transfer, etc., with a large lifting capacity, a wide range of operations, a wide range of applications, good versatility, and strong loading and unloading guarantee capabilities.
It can meet the requirements of containers. Hoisting requirements in different locations are widely used in container distribution centers such as container logistics, port freight transfer stations, railway container handling stations, warehouses, military logistics support, and customs departments. Its "fast, flexible, efficient, and convenient" characteristics have become more and more popular. The more awareness and recognition.
40Ft Sidelifter Trailer for Sale In East Timor with Best Price
40Ft Sidelifter has a long average trouble-free working time, stable and reliable performance, compact and reasonable layout, beautiful and stylish, easy to use and easy to maintain.
1. Sliding container side self-loading and unloading transport vehicle
Through the sliding movement of the front and rear cranes, the loading and unloading of 20ft or 40ft containers or similar containers can be realized. The application range is wide and the versatility is good, which greatly expands the use of the equipment.
2. Electro-hydraulic load adaptation
The use of high and low-pressure double pumps, and the combination of flow through the split valve to supply oil to the two cranes at the front and the rear, can realize the large flow of the dual pumps at the same time under low pressure working conditions and the low-pressure pump under high pressure working conditions The small flow rate for high-pressure unloading ensures the efficiency and quality of hoisting operations.
This technology can not only ensure the stability of the speed switching of the crane under high and low-pressure conditions but also make full use of the output power of the engine, which is more economical.
37 Ton Side Lifter Trailer for Sale Near Me
3. Reasonable matching of safety systems
During the operation of 40Ft Sidelifters, there is an intelligent anti-tipping protection system on one side of the outrigger to monitor the stability of the whole machine in real-time. If there is a danger of tilting, it can automatically alarm and effectively lock; the other side of the outrigger is protected by a baffle to prevent The container enters the dangerous area.
The application of high-strength steel plates has passed advanced software analysis and rigorous testing to ensure safety and reliability; at the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanisms, and practical and safe emergency stop functions have also been added. Security guarantee.

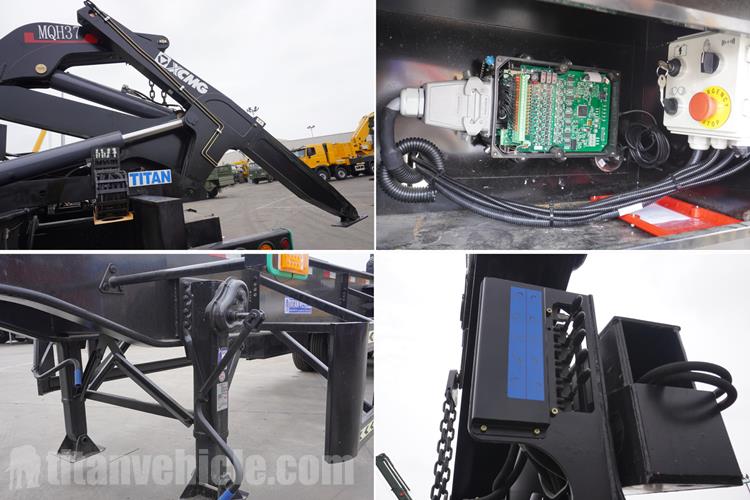

4. 40Ft Sidelifter with lifting chain twist lock device + automatic storage
The lifting chain twist-lock mechanism for container loading and unloading, the twist lock is automatically rotated and locked in the container corner during the packing operation, and will not fall off, ensuring safety during operation; during transportation, the twist-lock can still be automatically locked through the limit device,
The repetitiveness of the operator's transport chain collection and unloading chain loading is eliminated, and the safety during driving is also greatly improved; after the operation is completed, the hoisting chain during the boom recovery process is realized by optimizing the movement trajectory of the hoisting point and the chain closing position The automatic storage greatly improves the comfort of operation and the safety of the whole vehicle.
37 Ton 40Ft Side Lifter Trailer for Sale Manufacturer
5. Double pumps and double branches
The whole vehicle is powered by an engine with an adjustable speed, and the hydraulic oil output by the double pump is
After the confluence valve group, it is transported to the series-connected front and rear 40Ft Sidelifter multi-way valve group to drive their respective actuators, which has a wider range of linkage adaptability, which greatly guarantees the stability and reliability of the hoisting process.
6. Control system optimization technology
The 40Ft 37 ton sidelifter reasonably matches the combination of a remote wireless control remote control and a load-sensitive electro-hydraulic proportional multi-way valve with pressure compensation in front of the valve. The remote control operation is safe, comfortable, and convenient.
The panel and handle of the remote control are human-oriented and conform to the movement trend of the machine. Proportional control realizes step-less speed regulation to ensure smooth operation of the whole machine and accurate control of subtle movements.

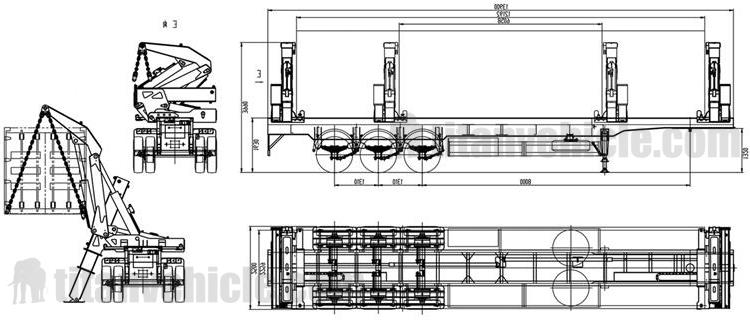

Drawing of 20/40Ft Sidelifters Trailer
